| Steam Capacity Range: | 6-50 ton/hour, 6-50tph |
| Fuel Options: | Natural Gas, LPG, Biogas, Diesel, Heavy Oil, Dual Fuel , Propane, Hydrogen, Industrial Waste Gas etc. |
| Steam Pressure: | 1.25-3.82MPa |
| Superheated Steam Temperature: | ≤450℃ |
| Manufacture Standard: | ASME、GB、CE-PED、ISO、EAC、DOSH、AS、MOM、NR13 |
| Key Features: |
Full membrane water-cooled wall structure with excellent sealing performance. High efficiency ≥98%. Optimized water circulation design, ensures stable water level, high steam quality, steam dryness of ≥99%; Split-type frequency conversion proportional control burner, combustion efficiency of 99.9%; High-quality insulation materials and advanced shell sealing technology, minimal heat loss and suitability for outdoor installation; Optimized flue gas flow design, compact structure, small footprint and rational layout. |

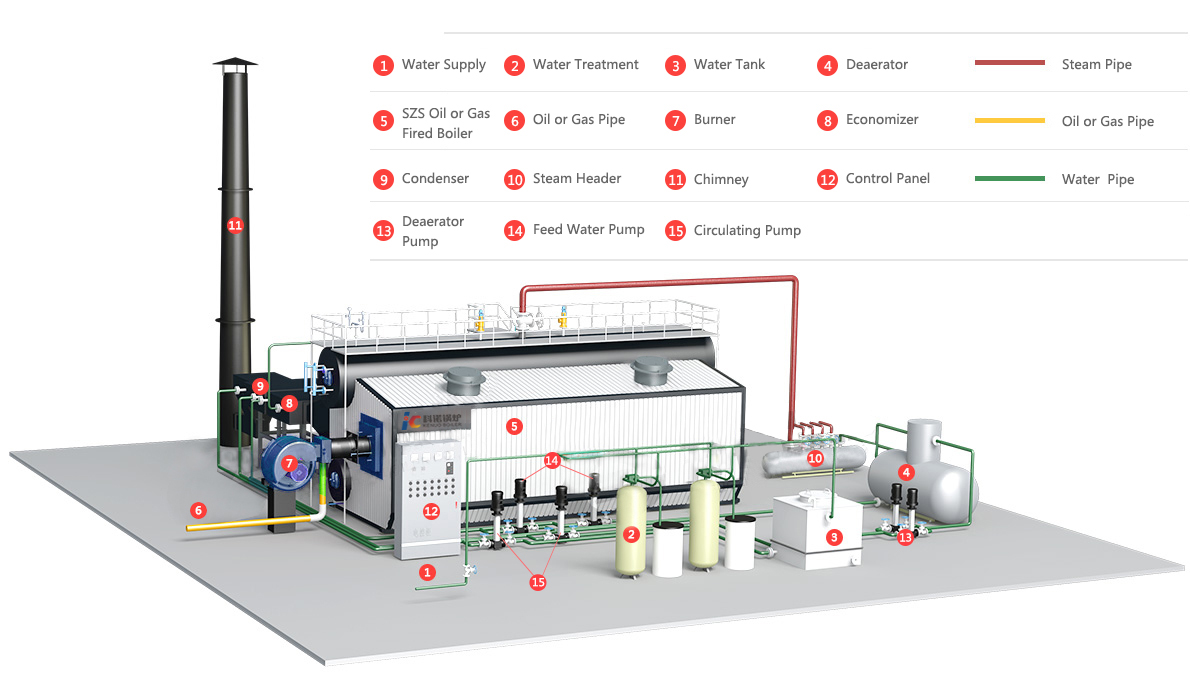

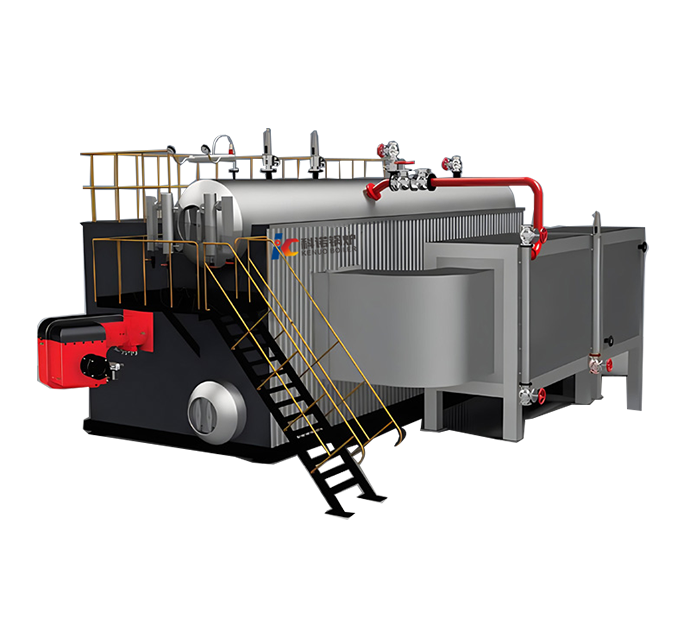

The SZS series water-tube steam boiler is package type boiler, adopts a double-drum “D-type” layout with a full membrane wall structure. The boiler consists of an upper drum, a lower drum, membrane water-cooled walls, a convection heating tube bundle, a superheater, a rear economizer, a condenser, and an air preheater. This boiler is delivered as a complete unit, enabling quick on-site installation, reduced investment in boiler house construction, and a shortened installation period.
1. Adopts full membrane water-cooled wall structure with excellent sealing performance, increased heating surface, and a boiler thermal efficiency of ≥98%;
2.Optimized water circulation design between the upper and lower drums ensures stable drum water level, high steam quality, and steam dryness of ≥99%;
3. Equipped with a split-type frequency conversion proportional control burner, achieving a combustion efficiency of 99.9%;
4.Uses high-quality insulation materials and advanced shell sealing technology, resulting in minimal heat loss and suitability for outdoor installation;
5.Optimized flue gas flow design within the boiler body, featuring a compact footprint and rational layout.
Steam Boiler, Hot Water Boiler, Biomass Boiler, Thermal Oil Boiler
|
Model |
Rated steam output(TPH) |
Rated working pressure(MPA) |
Rated Steam Temperature(℃) |
Heat Efficiency(%) |
Flue gas temperature(℃) |
Transport Weight(ton) |
Transport Dimension(mm) |
|---|---|---|---|---|---|---|---|
|
SZS6 |
6 |
1.25-3.82 |
194/204/226 |
≥98 |
≤65 |
19 |
6400×2800×3500 |
|
SZS8 |
8 |
1.25-3.82 |
194/204/226 |
≥98 |
≤65 |
25 |
7500×3000×3500 |
|
SZS10 |
10 |
1.25-3.82 |
194/204/226 |
≥98 |
≤65 |
30 |
8500×3100×3400 |
|
SZS15 |
15 |
1.25-3.82 |
194/204/226 |
≥98 |
≤65 |
38 |
9500×3800×3600 |
|
SZS20 |
20 |
1.25-3.82 |
194/204/226 |
≥98 |
≤65 |
46 |
11000×3800×4000 |
|
SZS25 |
25 |
1.25-3.82 |
194/204/226 |
≥98 |
≤65 |
50 |
11000×4000×4000 |
|
SZS30 |
30 |
1.25-3.82 |
194/204/226 |
≥98 |
≤65 |
60 |
12000×4200×4000 |
|
SZS35 |
35 |
1.25-3.82 |
194/204/226 |
≥98 |
≤65 |
65 |
12600×4400×4000 |
|
SZS40 |
40 |
1.25-3.82 |
194/204/226 |
≥98 |
≤65 |
75 |
13000×4600×4200 |
|
SZS45 |
45 |
1.25-3.82 |
194/204/226 |
≥98 |
≤65 |
85 |
13500×4800×4200 |
|
SZS50 |
50 |
1.25-3.82 |
194/204/226 |
≥98 |
≤65 |
95 |
13500×5500×4600 |
