| Steam Capacity Range: | 2-30 ton/hour, 100-2100BHP |
| Fuel Options: | Natural Gas, LPG, LNG, Biogas, Diesel, Heavy Oil, Dual Fuel , Propane , #2 Fuel Oil |
| Steam Pressure: | 1.0MPA-2.5MPA |
| Manufacture Standard: | ASME、GB、CE-PED、ISO、EAC、DOSH、AS、MOM、NR13 |
| Key Features: |
Integrated economizer, condenser, air preheater, minimize footprint. VFD control for water feeding and combustion, save electricity 30%. Boiler efficiency up to 103%, lowest fuel cost. No refractory smoke box, trouble free operation. Oval Shape reversal chamber, Superior steam quality. |

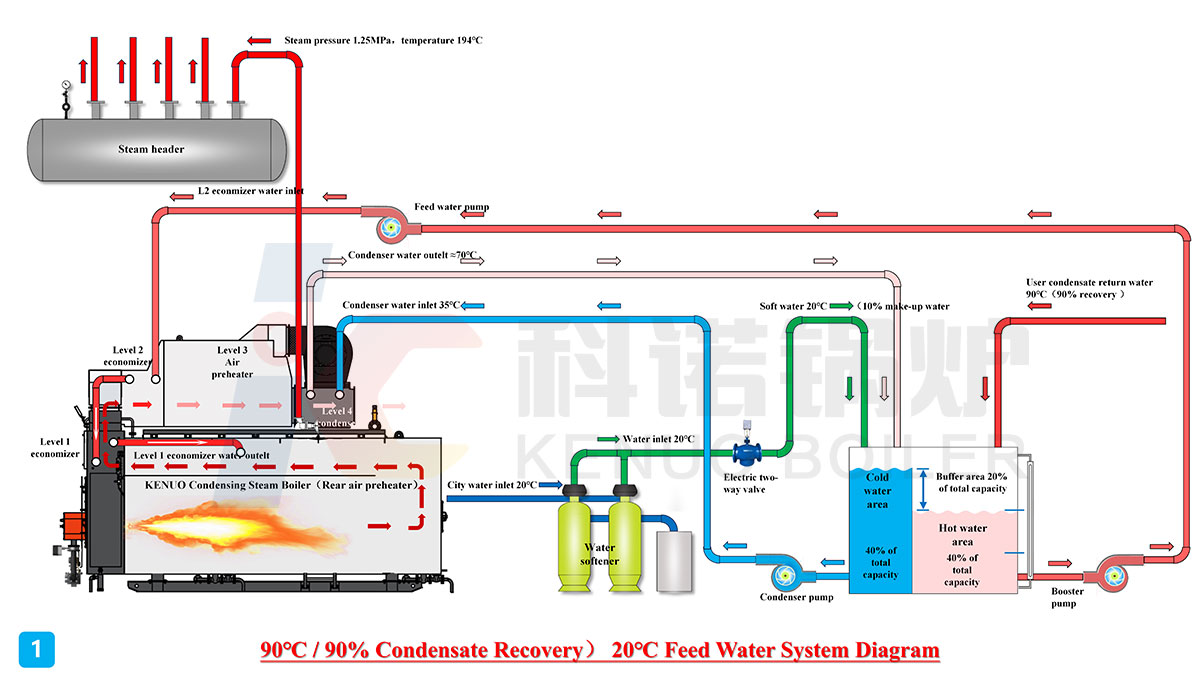

For the steam system with high condensate recovery rate and high condensate return temperature, and users who have higher system energy saving requirements, Kenuo engineers design the Rear Air Pre-heater series condensing steam boiler, the high efficiency air pre-heater plus the integrated economizer and condenser, further reduce the smoke exhaust temperature, save energy, and improve thermal efficiency. It a adopt high efficiency and low stress horizontal wetback two pass structure, two-pass structure, An arc-shaped double-open furnace door for easy maintenance. air-cooled smoke box , and uses a large furnace for full-mixed combustion and high-efficiency threaded smoke tube heat transfer; it is the first to use low-nitrogen coupling and has a unique low-nitrogen combustion technology in the furnace to comprehensively suppress the production of nitrogen oxides (NOx); Equipped with ABB inverters, split low-nitrogen burners, 7/10-inch LCD touch screens and high-performance PLC programmable controllers, which fully meet the boiler's ultra-low NOx emission standards.
Hot Water Boiler, Water Tube Boiler, Biomass Boiler, Thermal Oil Boiler
|
Model |
Rated steam output(TPH) |
Rated working pressure(MPA) |
Rated Steam Temperature(℃) |
Heat Efficiency(%) |
Nox Emission(mg/m³) |
Transportation Weight(ton) |
Overall Dimension(mm) |
|---|---|---|---|---|---|---|---|
|
WNS2-1.25-Y(Q) |
2 |
1.25 |
194 |
≥96 |
≤80/30 |
8.2 |
4960*2140*2340 |
|
WNS3-1.25-Y(Q) |
3 |
1.25 |
194 |
≥96 |
≤80/30 |
9.8 |
5280*2240*2380 |
|
WNS4-1.25-Y(Q) |
4 |
1.25 |
194 |
≥96 |
≤80/30 |
12.9 |
5720*2440*2570 |
|
WNS5-1.25-Y(Q) |
5 |
1.25 |
194 |
≥96 |
≤80/30 |
16.6 |
6200*2700*3900 |
|
WNS6-1.25-Y(Q) |
6 |
1.25 |
194 |
≥96 |
≤80/30 |
17.2 |
6690*2630*2660 |
|
WNS8-1.25-Y(Q) |
8 |
1.25 |
194 |
≥96 |
≤80/30 |
21.5 |
6800*2800*3050 |
|
WNS10-1.25-Y(Q) |
10 |
1.25 |
194 |
≥96 |
≤80/30 |
27.5 |
7250*2900*3250 |
|
WNS12-1.25-Y(Q) |
12 |
1.25 |
194 |
≥96 |
≤80/30 |
30.3 |
7750*3100*3500 |
|
WNS15-1.25-Y(Q) |
15 |
1.25 |
194 |
≥96 |
≤80/30 |
37.5 |
8000*3300*3700 |
|
WNS20-1.25-Y(Q) |
20 |
1.25 |
194 |
≥96 |
≤80/30 |
49.3 |
9050*3500*4050 |
|
WNS25-1.25-Y(Q) |
25 |
1.25 |
194 |
≥96 |
≤80/30 |
57.6 |
9850*3700*4300 |
