| Steam Capacity Range: | 1-8 t/h |
| Fuel Options: | Coal, Biomass pellets, Biomass briquettes, Wood chip, Corn cob, Rice husk, Palm shell, Walnut shell, Cocoa shell, Cashew shells, Coconut shell, etc. |
| Steam Pressure: | 1.0MPA-1.6MPA |
| Key Features: |
1. Integrated design, small size, convenient transportation, saving 30% boiler room construction cost; |
| Application |
Food processing, beverage, textile, paper-making, pharmaceutical, chemical, building material, hospital, hotel, laundry, etc. |

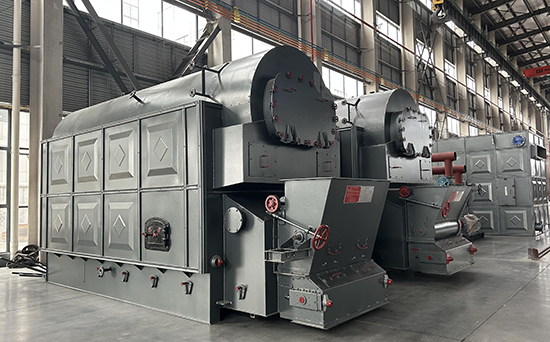

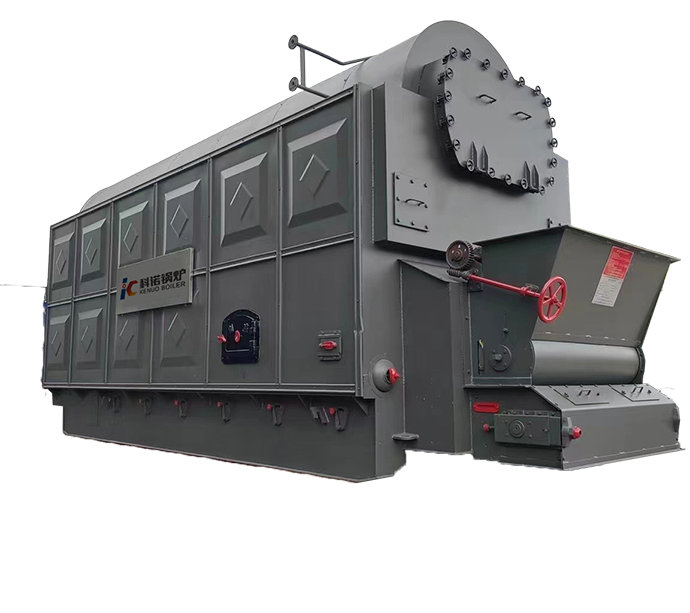

The DZ series integrated water-fire tube steam boiler adopts a single-drum vertical flue gas three-pass design. The boiler body consists of a boiler shell, a threaded smoke pipe, a header and a water-cooled wall tube. The water-cooled walls on the left and right sides of the furnace and the lower part of boiler drum are radiation heating surfaces, and the two wings of the furnace and the threaded smoke pipes are convection heating surfaces. This product has the characteristics of stable operation, easy operation, sufficient output, high thermal efficiency and long service life. DZ series biomass boiler is packaged delivery, short installation time and can be put into operation quickly to create value for users.
Kenuo Boiler can customize design the boiler furnace and combustion devices according to different fuel calorific value, size and moisture content, fixed grate, chain grate, reciprocating grate etc. Make the boiler applicable for various biomass fuels such as Biomass pellets, Biomass briquettes, Wood chip, Corn cob, Rice husk, Palm shell, Walnut shell, Cocoa shell, Cashew shells, Coconut shell, agricultural and industrial wood wastes etc.
|
Model |
Rated steam output(TPH) |
Rated working pressure(MPA) |
Rated Steam Temperature(℃) |
Heat Efficiency(%) |
Applicable Fuel |
Transportation Weight(ton) |
Overall Dimension(mm) |
|---|---|---|---|---|---|---|---|
|
DZG1 |
1 |
1/1.25/1.6 |
184/194/204 |
≥83 |
Coal, biomass |
8.7 |
4330×1950×2690 |
|
DZL1 |
1 |
1/1.25/1.6 |
184/194/204 |
≥83 |
Coal, biomass |
15.3 |
5240×2010×2800 |
|
DZG2 |
2 |
1.0/1.25/1.6 |
184/194/204 |
≥83 |
Coal, biomass |
15.1 |
4880×2350×3200 |
|
DZL2 |
2 |
1.0/1.25/1.6 |
184/194/204 |
≥83 |
Coal, biomass |
24 |
5960×2400×3200 |
|
DZG4 |
4 |
1.0/1.25/1.6 |
184/194/204 |
≥83 |
Coal, biomass |
19 |
5660×2550×3450 |
|
DZL4 |
4 |
1.0/1.25/1.6 |
184/194/204 |
≥83 |
Coal, biomass |
27.5 |
6830×2650×3550 |
|
DZG6 |
6 |
1.0/1.25/1.6 |
184/194/204 |
≥83 |
Coal, biomass |
26 |
6950×3040×3700 |
|
DZL6 |
6 |
1.0/1.25/1.6 |
184/194/204 |
≥83 |
Coal, biomass |
40.2 |
7980×3180×3810 |
|
DZL8 |
8 |
1.0/1.25/1.6 |
184/194/204 |
≥83 |
Coal, biomass |
45.6 |
8200×3300×3960 |
